4_A linear flexible graphene pressure sensor
Figure 0: Photo of the assembled pressure sensor.
🗓 Published: October 2024
📚 Journal/Conference: Advanced Materials
🔍 Abstract
This paper presents a bilayer flexible pressure sensor that integrates:
- A nonlinear conductive graphene composite (NcGc) layer,
- A laser-reduced graphene oxide (LrGO) layer,
- Achieving ultra-high sensitivity of 742.3 kPa⁻¹,
- A wide linear sensing range up to 800 kPa (R² = 0.99913),
- And excellent long-term durability over 10,000 cycles (@ 210 kPa).
💭 Initial impression:
At first glance, it looks like a nearly perfect sensor. So what’s the catch?
Turns out, the key limitation is its voltage-driven thermal correction system, which may increase complexity and power consumption.
🧗♂️ Technical Challenges
Nonlinear Behavior of Composite Materials
Inhomogeneous materials like NcGc often show nonlinear I–V curves, especially at low voltages. Controlling this behavior is difficult, but necessary for low-power wearable applications.Temperature Sensitivity Drift
Many pressure sensors suffer from temperature-induced signal drift, since the conductivity of graphene-based materials varies with temperature. This can severely reduce accuracy in real-world conditions.
🌟 Methodology & Innovation
🧩 Key Idea
The researchers propose a self-correcting bilayer sensor, which turns a typical weakness (thermal drift) into a strength. They embed a flexible micro-heater below the sensor to simulate and correct temperature-induced drift.

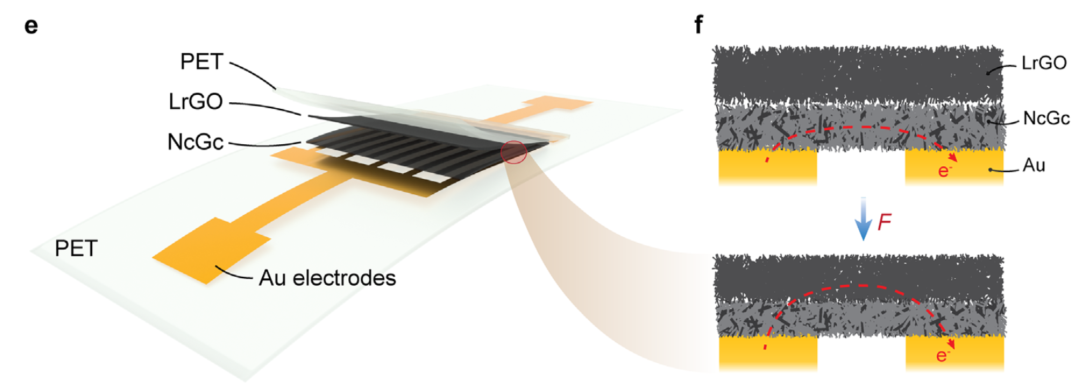

Figure 1: Bilayer structure of the pressure sensor.

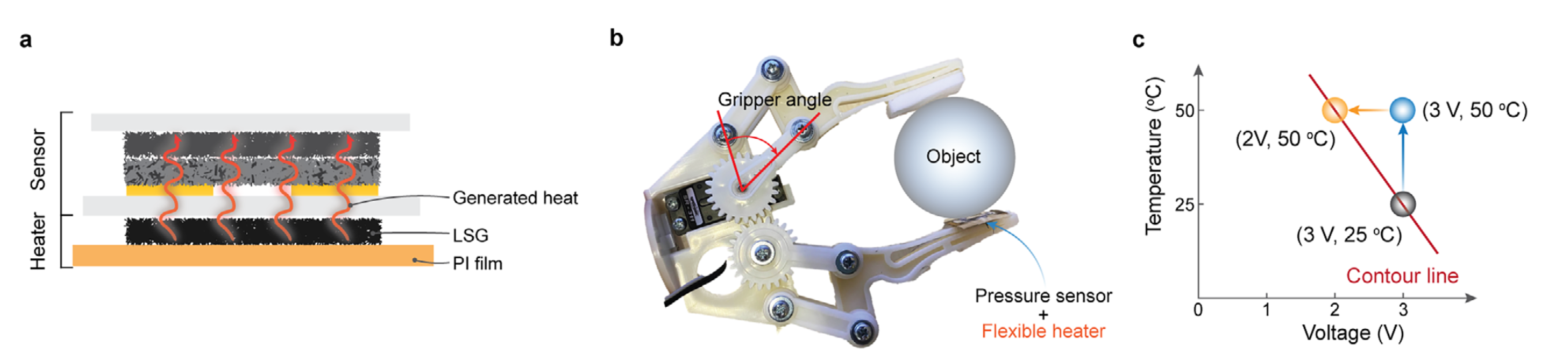

Figure 2: Cross-sectional schematic showing how heat from the flexible heater compensates for ambient temperature changes.
💡 Insight:
This paper is a great example of turning a limitation into a feature. Temperature variation—usually a major drawback—is used here as a self-correction mechanism. Clever and elegant.
🧠 Reflection
This design inspires a mindset shift: instead of avoiding certain sensor weaknesses (like thermal sensitivity), what if we embrace them and build in intelligent compensation?
It also raises new research questions:
- Could this kind of self-correcting bilayer be adapted to other sensing modalities (e.g., strain, humidity)?
📌 Takeaways for My Work
As someone working with DIW-printed graphene/PDMS pressure sensors, this study reminds me:
- Material nonlinearity isn’t always bad—it can be engineered to be functional.
- Thermal effects are not just noise—they can be controlled and even exploited.
- A bilayer structure is worth exploring in my system, especially for thermal or electrical decoupling.
