3_Shape-programmable lamellar aerogel pressure sensing

Figure 0: Demonstration of the application during sleep.

🗓 Published: October 2024
📚 Journal/Conference: Advanced Functional Materials

---

🔍 Abstract

• The work introduces a lamellar shape-memory conductive (LSMC) aerogel for pressure sensing.
• The lamellar structure enables excellent compression properties, supporting high sensitivity and wide detection range for wearable electronics.
• Application focus: bedridden patients — for pressure injury prevention.

💭 Some thoughts I had while reading:

• The paper frequently uses the word subtle — but what’s the actual resolution requirement for their application?
• (And… same question for myself!)

---

🧗‍♂️ Technical Challenges

1. Detecting subtle and dynamic motions requires:

   • High sensitivity
   • Wide sensing range
   • Control of material modulus via microengineering strategies:
     • Porous layers
     • Micropatterned structures
     • Multilayer-filled designs

2. Conformal attachment to irregular and dynamic skin surfaces remains a significant challenge.

---

🌟 Methodology

🧩 LSMC Aerogel Fabrication

Recently, freezing-based methods have gained popularity in structural design for sensors.

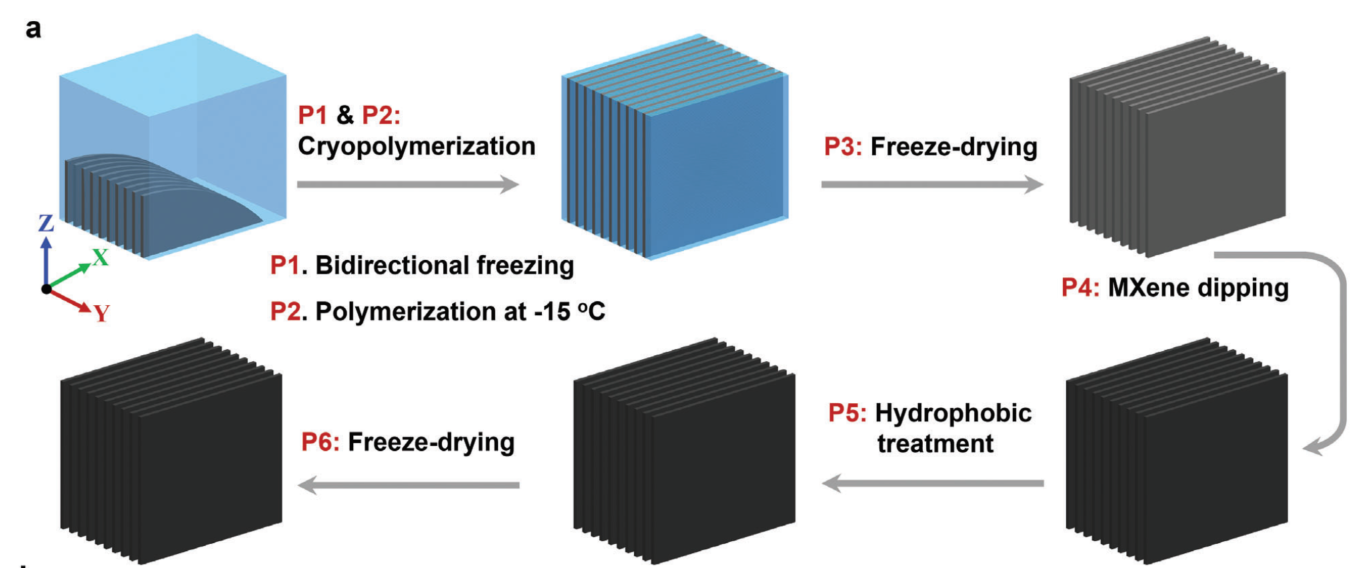

Figure 2: Illustration of the fabrication process of the LSMC aerogel

🔍 What I’ve learned:
Cryopolymerization is a polymerization process carried out at sub-zero temperatures, where ice crystals act as a template to form highly porous polymer networks upon thawing.

---

🔁 Mechanical Properties

Compressive Resilience

• Traditional isotropic aerogels deform plastically under large compressive strain — not ideal for flexible electronics.
• Here, the researchers used bidirectional freezing to guide ice crystal growth, forming anisotropic lamellar pores that offer better elastic recovery.

📘 What I’ve learned:

Isotropic materials have identical properties in all directions, whereas anisotropic materials exhibit direction-dependent behavior due to structural or molecular orientation.

❓ My question: What about PDMS and graphene?

🧠 Current answer:

• PDMS: isotropic
• Graphene: anisotropic
• Composite behavior depends on graphene’s dispersion or alignment within the PDMS matrix.

---

🤖 Pressure Sensing Performance

• The LSMC aerogel-based electronics show:
  • High sensitivity: 1.42 kPa⁻¹
  • Wide sensing range: up to ~164 kPa
• Durability: Maintains performance over 3500 compression cycles at 1 kPa.

---

🔁 Shape-Memory Performance

• Exhibits a melting–crystallization transition, supporting thermally triggered shape-memory effect (SME).

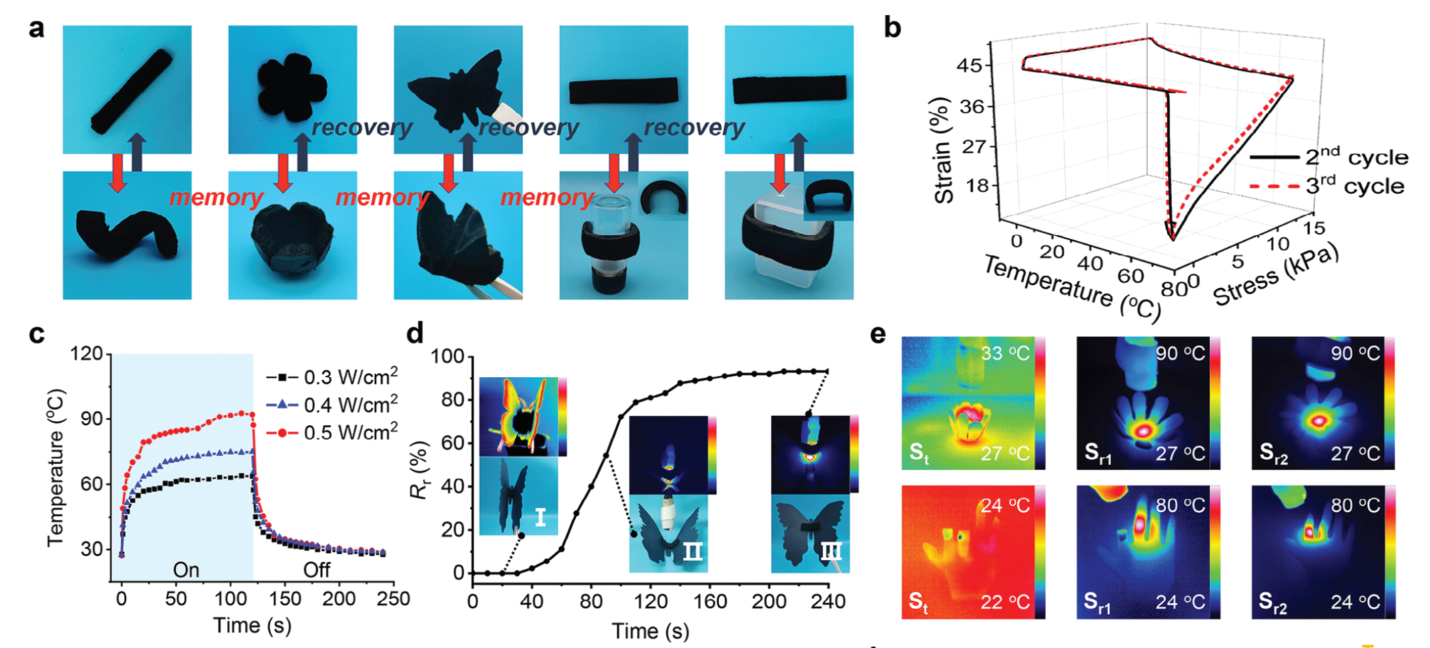

Figure 3: Shape-memory properties of the LSMC aerogel.

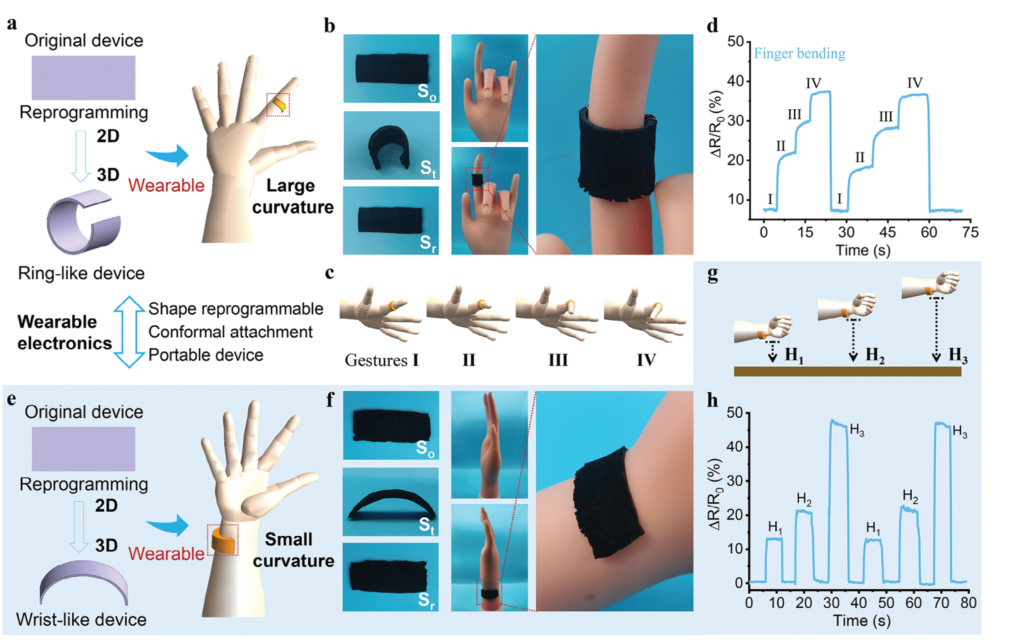

Figure 4: Programming 3D electronics on curved surfaces using SME.

❓ My question:

• When the electronics change shape, is recalibration needed?
• Does the sensitivity change after deformation?
  📧 I should consider emailing the authors to ask.

---

🧪 A Proof-of-Concept System

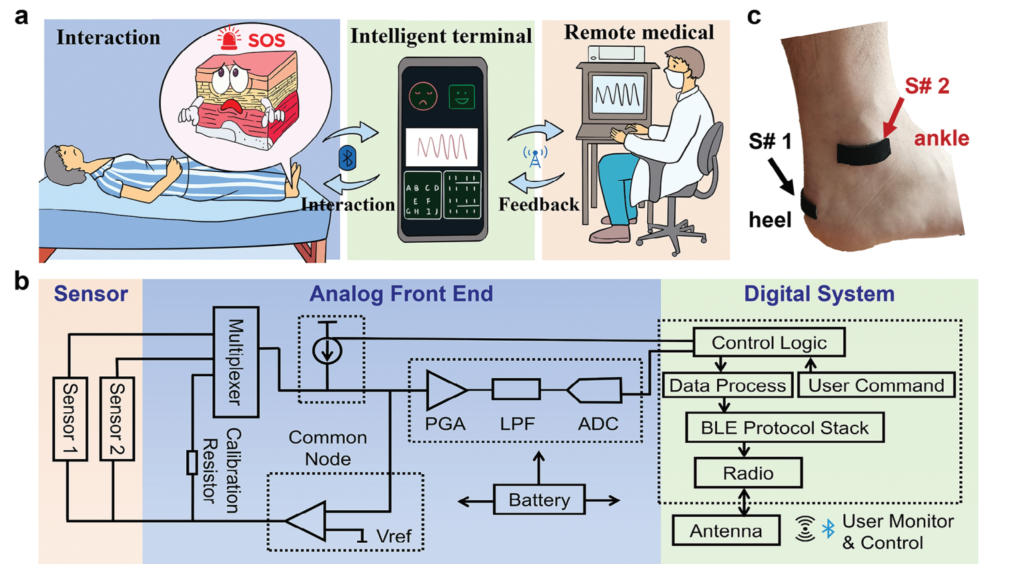

Figure 5: Point-of-care pressure monitoring system for injury prevention.

---

🧠 Reflections

This paper reminds me that sensing materials and structures are inseparable. The structure isn’t just passive — it’s part of the intelligence. The idea of embedding shape-memory into the mechanical backbone is so clever.

It also prompts me to think about my own work:

• Should I consider adding shape-memory components?
• How would anisotropy affect my insole design?

---
